Built-for-You. Built-to-Last.

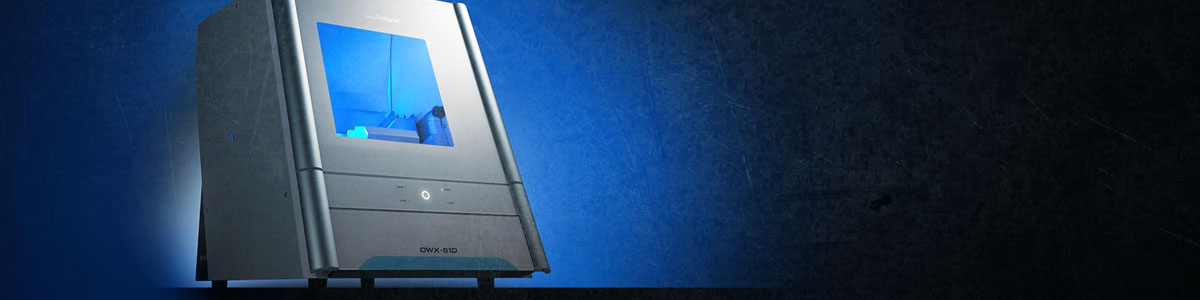

For thirty years, Roland DG has been the trusted provider of milling machines that are built to last. The DWX-51D 5-Axis Dental Milling Machine is no exception. After extensive research in which lab technicians were asked what they needed in a production mill, the DWX-51D was developed to enhance user experience, maximize ease-of-use and improve output quality. Built with a simple and modern design, the DWX-51D looks as effortless as it operates.
Distinguishing Features
The DWX-51D offers the best performance and value for dry milling zirconia and other popular materials. For those wanting to combine dry and wet milling, running the the DWX-51D dry mill alongside the DWX-4W wet mill offers the most flexible and productive solution.
Using separate dry and wet DWX devices gives you the confidence to take on the maximum amount of glass ceramic and zirconia restorations without the need for time-consuming, back-and-forth set-up and cleaning of a single machine.
| DWX-51D 5-Axis Dental Milling Machine | |
|---|---|
| Cuttable material | Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum |
| Loadable workpiece shape | Step section: 98.5 mm (diameter), height 10mm Body section: 95 mm (diameter), height max. 60mm Pin diameter: 6 mm |
| Operating speed | 6 to 1800 mm/min. (0.24 to 70.9 in./min.) |
| Spindle motor | Brushless DC motor |
| XY resolution | 6,000 to 30,000 rpm |
| Rotary axis travel angle | A axis: ±360° B axis: ±30° |
| Number of burs housed | 10 |
| Attachable bur | Shank diameter: 4 mm Length: 40 to 55 mm |
| Compatible compressed air | 0.02 to 0.2 MPa |
| Interface | USB |
| Control command set | RML-1, NC code |
| Power requirements | AC 100 to 240 V ± 10%, 50/60 Hz , 2.0 A (overvoltage category II, IEC 60664-1) |
| Power consumption | Approx. 200 W |
| External dimensions | Width x Depth x Height: 495 × 660 × 600 mm (19.5 × 26.0 × 23.6 in.) |
| Weight | 67 kg (147.7 lbs.) |
