Take the Hard Work Out of Engraving

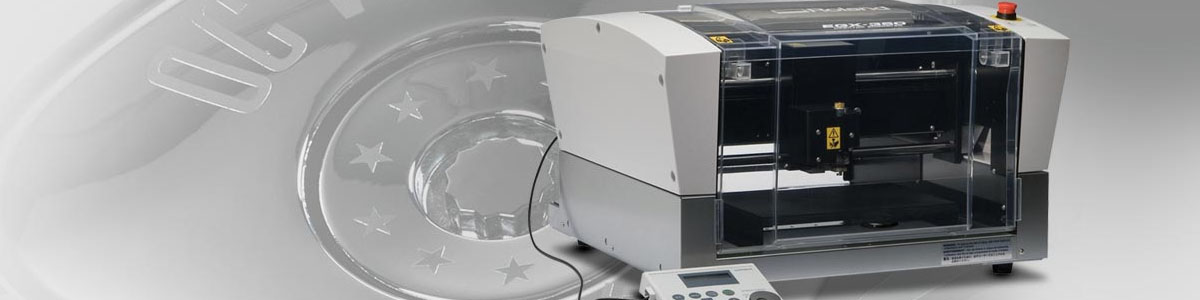

Featuring advanced surface detection, the EGX-350 Automatic Engraving Machine takes the headache out of complicated set-up and offers a simple process to prepare and engrave ADA signage, gifts, awards and more. Powered by a 20,000 rpm DC brushless motor and equipped with advanced software, the EGX-350 can produce a wide range of engraved items with crisp text and clean graphics.Distinguishing Features
Beautiful Versatility
The EGX-350 is built for variety, engraving on plastic, acrylic, aluminum, stainless steel, brass artificial marble and wood. Unlike laser engravers and other automatic engraving machines, the EGX-350 preserves the original colors and textures of materials to provide a beautifully finished look.Hassle-Free Operation
The EGX-350 features automatic surface detection that simplifies setup by determining the Z-axis starting point. This saves you an incredible amount of time and configuration hassles typically associated with engraving devices. The EGX-350 also features a hand-held control panel with a large LCD screen to let you quickly select engraving options such as spindle speed, without using a computer. Even cleanup is trouble-free with a one-touch vacuum adaptor.All-in-One ADA Signage Solution Available
Bundle your EGX-350 Automatic Engraving Machine with Roland’s ADA Signage Kit to produce tamper resistant signage that complies with all federal and state ADA (Americans With Disabilities Act) regulations. Complete with an Accent Signage Manual, Raster® Pen License Kit, cutters, engraving software, engravable materials, adhesive sheets and a self-contained chip removal system, the ADA Signage Kit provides an all-in-one ADA solution.| EGX-350 | |
|---|---|
| Table Size | 12”(X) x 9.1”(Y) [305 mm x 230 mm] |
| Max. Cutting Area | 12”(X) x 9.1”(Y) x 1.6” [305 mm(X) x 230 mm (Y)] x 40mm(Z) |
| Feed Rate | X, Y-axis : Up to 2.4 ips (60mm/sec). Z-axis : Up to 1.2 ips (30mm/sec) |
| Software Resolution | 0.004” (0.01 mm) /step or 0.001” (0.025 mm ) /step (XY axis only) |
| Mechanical Resolution | X, Y -axis : 0.0001 in. (0.0025 mm) /step |
| Spindle Motor | Brushless DC motor, max. 50 W |
| Revolution Speed | 5,000 to 20,000 rpm |
| Tool Chuck | Cutter holder and collet |
| Interface | USB (compliant with Universal Serial Bus Specification Revision 1.1) or serial (RS-232C-compliant) |
| Instrction System | RML-1 |
| Power Requirements | AC 100 to 120 V ±10%, 1.3 A, 50/60 Hz (overvoltage category II, IEC 60664-1); or AC 220 to 240 V ±10%, 0.6 A, 50/60 Hz (overvoltage category II, IEC 60664-1) |
| Acoustic Noise Level | During operation: 60 dB (A) or less (when not cutting), During standby: 40 dB(A) or less (as specified by ISO 7779) (According to ISO 7779) |
| External Dimentions | 15.5" (W) x 24.3" (D) x 23.3" (H) [393 (W) x 616 (D) x 591 (H) mm] When cover is open: 23.56" x 21.5" x 27" [598 mm (W) x 545 mm (D) x 685 mm] |
| Weight | 75 lb. (34 kg) |
| Operation Temperature | 41 to 104 °F(5 to 40 °C ) |
| Operation Humidity | 35 to 80 % (no condensation) |
| Accessories | Power cord, depth regulator nose (nose unit), nose-unit retainer (retaining screw, spring), spare mounting screw (for the cutter holder), character cutter (diameter 3.175 mm), flat cutter (diameter 3.175 mm), wrench, solid collet (diameter 3.175 mm), solid collet (diameter 4.36 mm), hexagonal wrench, hexagonal screwdriver, handy panel, adhesive sheet, vacuum adapter for chip cleaning, Roland Software CD-ROM, Roland EngraveStudioTM CD-ROM, Roland Software Program Guide, Roland EngraveStudioTM Program Guide, and User's Manual |
| Roland EngraveStudio™ System Requirements | |
| OS | Windows VistaTM (32-bit edition), Windows® XP, or Windows® 2000 |
| CPU | Pentium® III, 1 GHz or faster recommended |
| RAM | Windows Vista: 512 MB or more recommended Windows XP/2000: 256 MB or more recommended |
