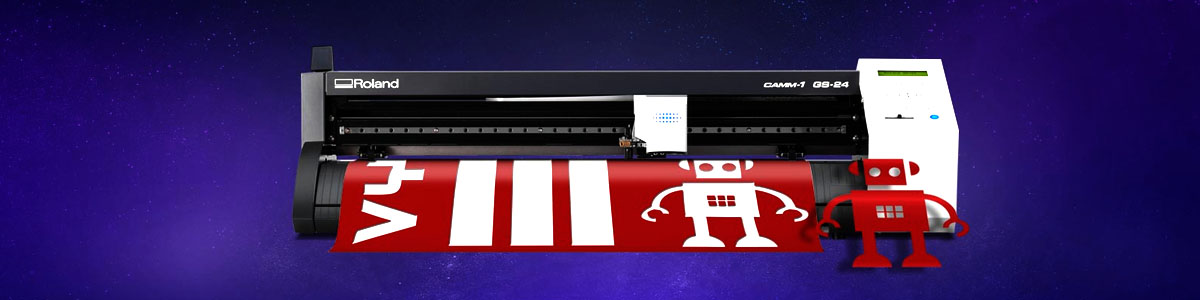

We've Redefined "Cutting Edge"
Cut vehicle graphics, signs and decals, decorated apparel and specialty graphics with the fast and intelligent cutting capabilities of the GS-24 desktop cutter. Enjoy overlap, perforation, printer crop mark recognition and other advanced features, all backed by an industry leading 3-Year Trouble-Free Warranty.
Distinguishing Features
Keep it Simple
With a newly-designed LCD panel, precise blade groove on its apron for easy manual cutting, an included roller base that keeps feeds straight, and a handy stand to comfortably hold roll media, the GS-24 Desktop Cutter is as easy to use as it is technologically-advanced.
Small Details, Big Results
With the GS-24, blade offset values can be adjusted manually – which means that even the smallest, most intricate designs will be cut flawlessly on a multitude of materials.
Speed That's Spot On
Thanks to a highly innovative digital servomotor, the GS-24 can handle vinyl cutting assignments, as well as cutting jobs involving other types of materials, at speeds of up to 20 inches per second. But speed without accuracy doesn’t mean anything. That’s where our curve-smoothing function comes in—precisely cutting at the highest speeds to optimize productivity and efficiency.
Meet the Maestro
Included Roland CutStudio software is specially-designed to harmoniously work with Roland cutters, allowing you to quickly, easily, and effectively output cut graphics, including resizing, repositioning, rotatnig, and mirroring images. The GS-24 also cuts oversized images using a using an improved tiling function, and cuts true type fonts without the need for outlining. CutStudio supports BMP, JPG, STX, AI, and EPS file formats, and can cut directly from Adobe Illustrator or Corel Draw.
| Model | GS-24 |
| Driving method | Digital control servo motor |
| Cutting method | Media-moving method |
| Loadable material width | 2 to 27-1/2 in. (50 to 700 mm) |
| Maximum cutting area | Width: 22.9 in (584 mm) Length: 984.25 in (25000 mm) |
| Acceptable tool | Special blade for CAMM-1 series |
| Maximum cutting speed | 19.69 in/s (500 mm/s) (all directions) |
| Cutting speed | .4 in to 19.69 in/s (10 to 500 mm/sec) (all directions) |
| Blade force | 30 - 350 gf |
| Mechanical resolution | 0.000492 in./step (0.0125 mm/step) |
| Software resolution | 0.000984 in./step (0.025 mm/step) |
| Distance accuracy(1) | Error of less than ±0.2 % of distance traveled, or ±0.1 mm, whichever is greater |
| Repetition accuracy (1)(2) | ±0.1 mm or less |
| Alignment accuracy for printing and cutting when loading printed material (1) (3) | ±1 mm or less for movement distance of 210 mm or less in material-feed direction and movement distance of 170 mm or less in width direction (Excluding effects of printer and/or material) |
| Interface | USB interface (compliant with Universal Serial Bus Specification Revision 2.0 Full Speed, Connecting Multiple Units) |
| Re-plot memory | 2MB |
| Instruction system | CAMM-GL III |
| Power supply | Dedicated AC adapter |
| Input: | AC 100 to 240 V ±10 % 50/60 Hz 1.7 A |
| Output: | DC 24 V, 2.8 A |
| Power consumption | Approx. 30 W (including AC adapter) |
| Acoustic noise level during operation | 70 dB (A) or less (according to ISO 7779) |
| Acoustic noise level during standby | 40 dB (A) or less (according to ISO 7779) |
| Dimensions |
33.5 in (W) × 12.2 (D) × 9.17 (H) With stand 33.5 in (W) X 12.2 (D) X 40.75 (H) |
| Weight |
29.77 lbs. [13.5 kg] With stand 58 lb. [26 kg] |
| Packaging size | 38 (W) x 17.7 (D) x 15.3 (H) in. [975 (W) x 450 (D) x 390 (H) mm] |
| Packaging weight | 39.7 lb. (18 kg) |
| Environment | Temperature: 5 to 40°C (41 to 104°F), humidity: 35 to 80 % (no condensation) |
| Included items | AC adapter, power cord, blade, blade holder, roller base, alignment tool, USB cable, Set Up guide |
