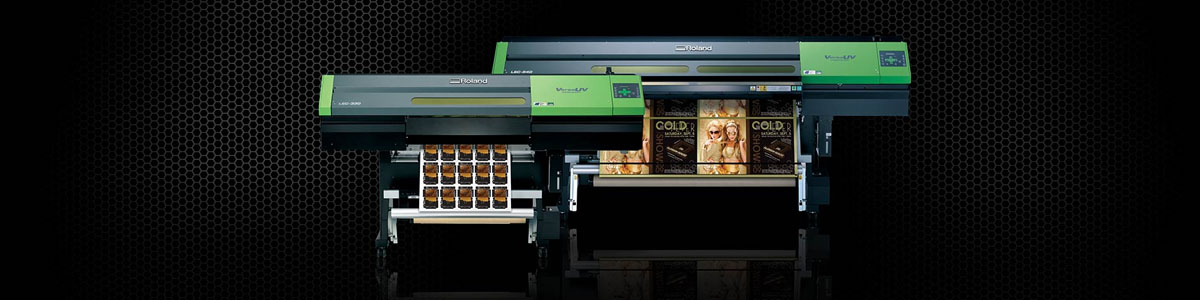

One device. Unlimited possibilities.
From roll stock to card stock, the VersaUV delivers detailed image quality at resolutions up to 1440 dpi. Print flawless graphics and text with vibrant Roland Eco-UV inks including CMYK, White and Clear Coat for remarkable special effects ranging from gloss or matte finishes to custom textures and simulated embossing. Plus, the VersaUV LEC automatically scores and contour cuts virtually any size and shape for unmatched versatility.
Materials matter.
Low heat UV LED lamps allow the VersaUV to handle a vast array of press substrates, including foils, BOPP, PE, PET film, clear and metallic stock. In addition, you can print directly onto synthetic and natural leathers, window coverings, fabrics and other specialty materials. The VersaUV includes a straight media path for printing on semi-rigid sheets such as card stocks and polycarbonates up to 1mm thick.
Package prototyping made easy
Whether it's a label, box, bag or sleeve, brand packaging customers require a proof of concept before going to press with a packaging job. But printing even a single proof on the press can be costly in both time and money. Traditional proofing devices are limited in materials and special effects, and require time-consuming hand processes for scoring and cutting. The LEC series eliminates these issues and allows you to create dynamic prototypes and custom short runs from start to finish, on virtually any substrate.
The proof is in the print.
For critical proofing applications, the VersaUV is compatible with popular color proofing software, including CGS ORIS Color Tuner, GMG Color Proof and FlexoProof/Dot Proof and EFI Color Proof XF and Fiery XF RIP.
| MODEL | LEC-540 | LEC-330 | ||
|---|---|---|---|---|
| Printing method / Cutting method | Piezoelectric inkjet / Grit roller feed | |||
| Acceptable media | Width | 10.2 to 54 in. (260 to 1371 mm) | 7.2 to 30 in. (182 to 762 mm) | |
| Thickness | Printing: Maximum 39 mil (1.0 mm) with liner Cutting : Maximum 16 mil (0.4 mm) with liner and 9 mil (0.22mm) without liner | |||
| Roll outer diameter | Maximum 8.3 in (210 mm) | Maximum 7.1 in (180 mm) | ||
| Roll weight | Maximum 66 lb. (30 kg) | Maximum 44 lb. (20 kg) | ||
| Core diameter | 2 in (50.8mm) or 3 in (76.2mm) | |||
| Printing/cutting width | Maximum 53 in (1346 mm) | Maximum 29 in (736 mm) | ||
| Ink cartridges | Type | Roland ECO-UV INK | ||
| Capacity | 220 ml (± 5 ml) | |||
| Colors | 5 colors + Clear coat (Cyan, Magenta, Yellow, Black, White and Clear coat) | |||
| Configuration | CMYK+Gloss+White, CMYK+White+White or CMYK+Gloss+Gloss | |||
| Ink curing unit | Built-in ultraviolet-light emitter (UV-LED Lamp) | |||
| Printing resolutions | 360x720 dpi, 720x1080 dpi, 720x1440 dpi, 1440x1440 dpi | 360x720 dpi, 720x720 dpi, 720x1440 dpi, 1440x1440 dpi | ||
| Acceptable blade tool | Roland CAMM-1 series cutter blade. | |||
| Cutting speed | 0.4 (10 mm/s) to 23.6 in/s (600 mm/s) (0.4 to 11.8 in/s in media feed direction) | |||
| Blade force | 30 to 300gf | |||
| Blade offset compensation | 0 to 0.0591 in (0.000 to 1.500 mm) | |||
| Software resolution (when cutting) | 0.000984 in/step (0.025 mm/step) | |||
| Distance accuracy (when printing) | Error of less than ± 0.3 % of distance traveled, or ± 0.012 in (0.3mm), whichever is greater. | |||
| Distance accuracy(When cutting) | Error of less than ± 0.4% of distance traveled, or ± 0.012 in (0.3 mm), whichever is greater. When distance correction ([CUTTING MENU] -[CALIBRATION]) has been preformed: error of less than ± 0.2 % of distance traveled, or ± 0.004 in (0.1mm), whichever is greater. | |||
| Repetition accuracy (When cutting) | ± 0.004 in (0.1mm) or less | |||
| Alignment accuracy for printing and cutting | ± 0.020 in (0.5mm) or less | |||
| Alignment accuracy for printing and cutting when reloading media | Error of less than ± 0.5% of distance traveled, or ± 0.012 in (3mm), whichever is greater | |||
| Media take-up system | Roll outer diameter | Maximum 8.3 in (210 mm) | Maximum 7.1 in (180 mm) | |
| Roll weight | Maximum 66 lb. (30 kg) | Maximum 44 lb (20 kg) | ||
| Interface | Ethernet (10 BASE-T / 100 BASE-TX, automatic switching) | |||
| Power-saving function | Automatic sleep feature | |||
| Power supply | Voltage and frequency | AC 100 to 240 V ± 10%, 50/60 Hz | ||
| Required power capacity | Maximum 5.5 A | Maximum 4.2 A | ||
| Power consumption | During operation | Maximum 490W | Maximum 370W | |
| Sleep mode | Approx. 15.3 W | Approx. 15.3W | ||
| Acoustic noise level | During operation | 64dB (A) or less | ||
| During standby | 40dB (A) or less | |||
| Dimensions (with stand) [6] | 115.2[W]x44.1[D]x49.6[H] in (2925[W]x1120[D]x1260[H] mm) | 86.6 [W] x 32.3 [D] x 49.6 [H] in (2200[W] x 820 [D] x 1260 [H] mm) | ||
| Weight (with stand) | 496 lb. (225 kg) | 390.2 lb. (177 kg) | ||
| Environment | Power on | Temperature: 68° to 90°F (20° to 32°C) (72°F [22°C] or more recommended), Humidity: 35 to 80% (no condensation) | ||
| Power off | Temperature: 41° to 104°F (5° to 40°C), Humidity: 20 to 80% (no condensation) | |||
| Included items | Same as LEC-330/300A plus crease tool (XD-CT) and an additional blade (ZEC-U3050) | Stand, power cord, blade (ZEC-U5022), blade holder (XD-CH2), media clamps, replacement blade for sheet cutter, cleaning kit, Roland VersaWorks software RIP, User’s manual, etc. | ||
