Produce Stunning Results
Print graphics with incredible detail and color on a virtually unlimited range of promotional products.
Prep for Profitable Printing with On-Board Primer
The LEF-200 features an optional on-board primer* cartridge for priming objects quickly and conveniently on a selection of different media substrates. Users can easily prep an object for customization – printing Primer ink directly from a file in VersaWorks Dual RIP before printing the full-color graphic. This makes adding graphics to challenging materials much more clean and efficient.
Includes Roland VersaWorks Dual
The LEF-200 includes new VersaWorks Dual RIP software, featuring a new core engine for faster previewing times and improved handling of PDF and EPS files, including files with drop-shadows and transparencies.
In VersaWorks Dual there’s no need to return to design software and you can set-up special color layers like White, Gloss and Primer directly in the RIP software. In addition, you can rotate, set spacing and Maintain Clip Position within the RIP to give you more control when printing graphics and applying Gloss Ink effects.
Roland VersaWorks Dual also offers a host of advanced features that include Predictive Ink Calculator, Spot Color Replacement, integrated Pantone® Spot Color Library and a Roland Texture System Library with a library of ready-to-use Gloss finishes and other effects.
Energy Efficiency
The LEF-200 uses an LED for UV-curing that last up to ten times longer than conventional UV lamps and can be instantly switched on or off, giving the user true on-demand production without the typical warm-up time. In addition, the LEF automatically enters a low-power mode when it is not used for an extended period of time.

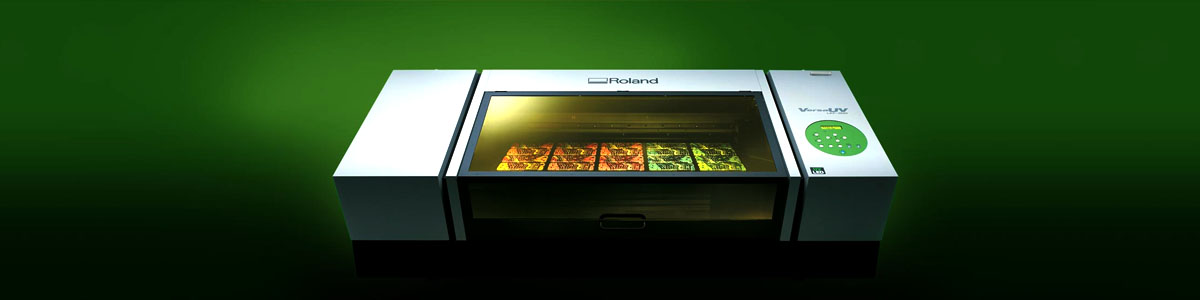

| Model | VersaUV LEF-200 | |
|---|---|---|
| Printing method | Piezo ink-jet method | |
| Acceptable media | Width | Maximum 21.2 in (538 mm) |
| Depth | Maximum 14.2 in (360mm) | |
| Thickness | Maximum 3.94 in (100mm) | |
| Weight | Maximum 11 lbs (5kgs) | |
| Maximum printing width/printing length | Maximum (20 x 13 in.) 508 x 330 mm | |
| Ink cartridges | Type | ECO-UV (EUV, EUV4) 220 cc cartridge |
| Colors | CMYKGlWh, CMYKPrWh, or CMYKWHWh |
|
| Ink curing unit | Built-in UV-LED lamp | |
| Print resolution (dpi) | Maximum 1,440 dpi | |
| Distance accuracy (when printing) (*1) |
Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | |
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | AC 100 to 240 V ±10%, 1.8 A (50 / 60 Hz) | |
| Power consumption | During operation | Approximately 149 W |
| Sleep mode | Approximately 13 W | |
| Acoustic noise level | During operation | 60 dB (A) or less |
| During standby | 49 dB (A) or less | |
| Outer Dimensions | 47.4 (width) x 37.9 (depth) x 21.7 (height) in. (1,202 (width) x 962 (depth) x 549 (height) mm ) |
|
| Weight | 242.5 lbs 110 kg |
|
| Environment | During operation (*2) | Temperature: 68 to 90°F (20 to 32°C) (72°F / 22°C or higher is recommended) Humidity: 35 to 80% RH (no condensation) |
| Not operating | Temperature: 41 to 104°F (5 to 40°C) , Humidity: 20 to 80% RH (no condensation) | |
| Accessories | Power cord, RIP & PRINT MANAGEMENT SOFTWARE (Roland VersaWorks Dual), user documentation, pad trays, etc. |
|
