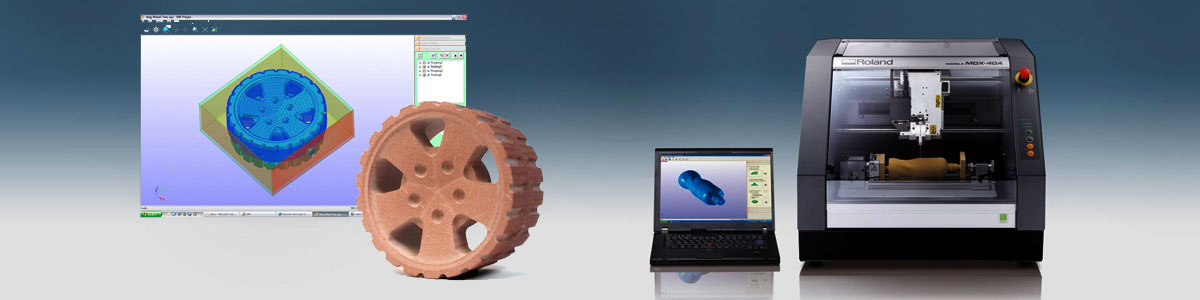

A Small Machine for Big Ideas
The MDX-40A is a versatile CNC mill that handles a wide variety of non-proprietary plastic and resin materials, including ABS, delrin, nylon, acrylic, chemical wood and tooling board. Everything from smooth art sculptures to high-precision parts and prototypes can be created with the MDX-40A, helping you transform concepts into functional objects. It can also operate as a stand-alone CNC engraving machine, offering further flexibility and potential revenue streams.
Easy is an Understatement
Become a prototyping expert almost immediately with the MDX-40A’s simple yet powerful Virtual Control Panel and bundled SRP Player CAM software. A five-step workflow takes the user through effortless milling, while speed, cursor and cutting tools offer further control. Optional extras include a ZCL-40A rotary axis for uninterrupted 360-degree modeling and a scanning unit for reverse engineering and digitizing of existing parts or molds.
Smooth Milling Minimal Finishing
The MDX-40A Benchtop CNC Mill is equipped with a high-precision spindle that reduces vibration and produces extremely accurate prototypes, perfect for achieving even complex snap-fit finishes. With ISO15448 standard collets, the MDX-40A generates a smooth surface finish that requires little to no post finishing work.
Prototypes that Work
The MDX-40A creates functional prototypes for industry testing that can survive a barrage of physical tests, including thermal and structural trials. Prototypes even as simple as a toothbrush undergo in-vivo testing for hand fit, brush reach and handle deflection.
Easy Control with the Virtual Control Panel
The MDX-40A creates functional prototypes for industry testing that can survive a barrage of physical tests, including thermal and structural trials. Prototypes even as simple as a toothbrush undergo in-vivo testing for hand fit, brush reach and handle deflection.
Mill Fine Details and Smooth Finishes
vs
| MDX-40A | |
|---|---|
| Acceptable materials | Resins such as chemical wood and modeling wax (metal not supported) |
| X, Y, and Z strokes | 12 (X) x 12 (Y) x 4-1/8 (Z) in. (305 (X) x 305 (Y) x 105 (Z) mm) |
| Distance from spindle tip to table | Maximum 123 mm (4-13/16 in.) |
| Table size | 12 (W) x 12 (D) in. (305 (W) x 305 (D) mm) |
| Loadable workpiece weight | 8.8 lb (4 kg) |
| XYZ-axis motor | Stepping motor |
| Feed rate | XY-axis: 0.0039 to 1.9 in./s (0.1 to 50 mm/sec.), Z-axis: 0.0039 to 1.1 in./s (0.1 to 30 mm/sec.) |
| Software resolution | NC-code: 0.000039 in./step (0.001mm/step), RML-1: 0.00039 in./step (0.01 mm/step)(RML-1) |
| Mechanical resolution | 0.00008 in./step (0.002 mm/step)(Micro-step) |
| Spindle motor | Brushless DC motor, Maximum 100 W |
| Spindle rotation | 4500 to 15000 rpm |
| Tool chuck | Collet |
| Interface | USB (compliant with Universal Serial Bus Specification Revision 1.1) |
| Power consumption | Approx. 210W |
| Dimensions | N26-3/8 (W) x 29-15/16 (D) x 21-13/16 (H) in. 669 (W) x 760 (D) x 554 (H) mm |
| Weight | 143.3 lb (65 kg) |
| Operation temperature | 41 to 104°F (5 to 40°C) |
| Operation humidity | 35 to 80% (no condensation) |
| Included items | Power cord, power plug adapter, USB cable, collet, Z0 sensor, hexagonal wrench, hexagonal screw drivers, spanners, Roland |
