From Your Mind to the Mill

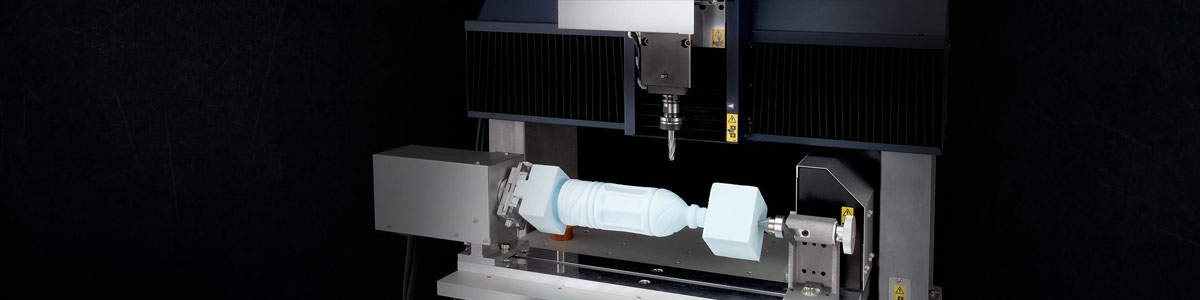

Whether for product designers, engineers and other professionals, or for students and educators, the MDX-540 combines advanced capabilities with ease-of-use for the precision milling of a wide variety of plastics, woods, metals and more. Although the MDX-540 is a highly advanced 4-axis desktop CNC device, it offers a simplified operating system plus included SRP Player CAM software to make prototype production an easy and stress-free experience. The rotary axis (optional), automatic tool changer (optional), and milling speeds can all be controlled via a simple Virtual Control Panel or the user-friendly software.
Choose the MDX-540 Model That's Right For You
All MDX-540 models deliver superior performance with a combination of Digital AC Servo motors and Feed Forward Processing commonly used in larger, more expensive machines. In addition to the base-model MDX-540, you can choose from the following options:
• MDX-540S| MDX-540 | MDX-540S | MDX-540A | MDX-540SA | |
|---|---|---|---|---|
| Usable Materials | Plastic, resin, wood and non-ferrous metals | |||
| XYZ-Axis Travel | 19.6(X) x 15.7(Y) x 6.1"(Z)[500 (X) x 400 (Y) x 155 mm (Z)] | 15.7(X) x 15.7(Y) x 6.1"(Z)[400 (X) x 400 (Y) x 155 mm (Z)] | ||
| Loadable workpiece size with optional rotary axis (ZCL-540) | 7.0” Diameter x 14.6” Length [177.8mm Diameter x 370.8mm Length] Actual milling area is smaller |
|||
| Distance From Spindle Nose to Table | Maximum 10" (254mm) | |||
| Table Size | 21.7(W) x 16.5"(D) [550(W) x 420mm (D)] | |||
| Loadable workpiece weight | At acceleration of 0.2G: maximum 26lb (12kg), 0.1G: 44lb (20kg), 0.05G: 44lb (20kg) | |||
| XYZ-axis drive system | AC servo motor, 60W | AC servo motor, 80W | AC servo motor, 60W | AC servo motor, 80W |
| Operating speed | Maximum 295ipm (7.5m/min) | |||
| Acceleration | 0.2G, 0.1G, 0.05G | |||
| Software resolution | RML-1 mode: 0.0004"(0.01mm ), NC-code mode: 0.00004" (0.001mm) | |||
| Mechanical resolution | 0.00004” (0.001mm) | |||
| Positioning accuracy | +/-0.004"/12"(+/-0.1mm/300mm), under no-load conditions | |||
| Repeat accuracy | +/-0.0019"(+/-0.05mm), under no-load conditions | +/-0.0008"(+/-0.02mm), under no-load conditions | +/-0.0019"(+/-0.05mm), under no-load conditions | +/-0.0008"(+/-0.02mm), under no-load conditions |
| Origin reproducibility (when the power is switched on/off) | +/-0.0019" (+/-0.05mm) | +/-0.0008" (+/-0.02m) | +/-0.0019" (+/-0.05mm) | +/-0.0008" (+/-0.02m) |
| Spindle motor | DC brushless motor, maximum 400W | |||
| Spindle speed | 400 to 12,000 rpm; 400 to 3,000 rpm for positioning and centering | |||
| Tool chuck | Collet method, maximum tool diameter: 0.4" (10mm) | |||
| Control command sets | RML-1 and NC codes | |||
| Interface | USB (compliant with Universal Serial Bus Specification Revision 1.1) | |||
| Power supply | Voltage and frequency: AC 100 to 120 V/220 to 240 V +/-10%, 50/60 Hz Required power capacity: 7A (100 to 120V)/4A (220 to 240V) |
|||
| Power consumption | Approx. 700W | |||
| Acoustic noise level | During operation (no cutting): 65dB (A) or less, during standby: 40dB (A) or less (according to ISO 7779) | |||
| Dimensions | Width x depth x height: 29.3 x 37.6 x 33.8Z" (745 x 955 x 858mm) | Width x depth x height: 30.1 x 37.6 x 33.8Z" (765 x 955 x 858mm) | Width x depth x height: 29.3 x 37.6 x 33.8Z" (745 x 955 x 858mm) | Width x depth x height: 30.1 x 37.6 x 33.8Z" (765 x 955 x 858mm) |
| Weight | 225lb (102kg) | |||
| Operating temperature | 41 to 104F (5 to 40C) | |||
| Operating humidity | 35 to 80% (no condensation) | |||
| Included items | Handy panel, power cord, tool sensor, sensor cable, nut, nut wrench, wrench, hexagonal wrenches, Roland Software CD-ROM, SRP Player CD-ROM, User's Manual, Roland Software Guide, SRP Player Installation and Setup Guide, NC Code Reference Manual, and Automatic Tool Changer (Refer to the ZAT-540 specs below.) |
