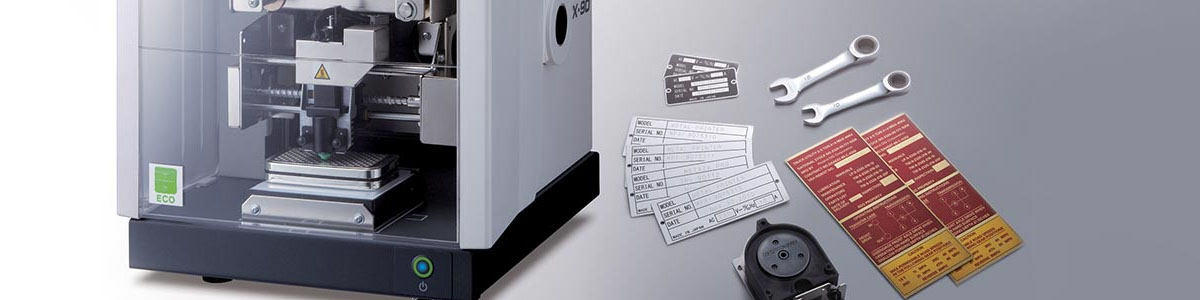

METAZA MPX-90

METAZA MPX-90
Photo Impact Printer

With the MPX-90 Photo Impact Printer you can personalize hundreds of metal and acrylic items with photos, logos and messages to create desirable and profitable products in your kiosk, jewelry store or gift shop. Enter the personalization business with a low-cost, quiet and clean device that fits on any desktop and handles both flat and curved objects with ease. In addition, users looking for an industrial marking solution will appreciate the MPX-90’s impact printing capabilities on stainless steel and titanium.

Interested?

MPX-90 Order Now!

Distinguishing Features

  • Imprint on stainless steel, titanium, gold, silver, copper, platinum, brass, aluminum, iron, and acrylic
  • High impact force for impact printing on non-plated and unpolished materials
  • Maximum printing are: 3.1” x 3.1”
  • Photo editing and engraving software included

Imprint Photographs, Vector Graphics and Text

The MPX-90 photo impact engraver uses a durable diamond-tipped stylus to strike the material with high speed and precision to reproduce even the most delicate gradations and small typefaces of your original design. The results are exceptional, with detailed graphics and fonts that stand out.

Improve Your Workflow with Variable Data Printing

While the ability to imprint small text and graphics even on the hardest of surfaces makes the MPX-90 unbeatable for such assignments, variable data printing capabilities also enable users to automatically apply sequential data to each item in a series.

Imprint Items of Extended Lengths

The MPX-90 features a fixed X-axis table that allows users to insert items of extended lengths when the machine’s cover is open. This feature enables users to imprint serial numbers anywhere along the edge of a product or personalize larger gift items such as photo frames or awards.
MPX-90
Printable Material Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, acrylic, etc. Vickers hardness (HV) of the printable surface must be 200 or less.
Loadable material size 3.94(W) x 7.87(L) x .80(Thick) in. - 100(W) x 200(L) x 20(Thick) mm
or 7.87(W) x 3.94(L) x .80(Thick) in. - 200(W) x 100(L) x 20(Thick) mm
Printable area 3.15 x 3.15 in. (80 x 80 mm)
Resolution High resolution: 265 dpi (Text)
353 dpi (Photo)
529 dpi (High Resolution)
1058 dpi (Vector)
Interface USB Interface (Compliant with Universal Serial Bus Specification Revision 1.1)
Power Supply Dedicated AC Adapter: AC 100V to 240V +/- 10%, 50-60Hz
Machine: DC 19V, 1.6A
Power Consumption Approximately 24W
Acoustic Noise Level Under 70dB (A)
Operation Temperature 50 to 86°F (10 to 30°C)
Operation Humidity 35 to 80% (No condensation)
External Dimensions 11.3(W) x 15.1(D) x 12.2(H) in. - 286(W) x 383(D) x 308(H) mm
Weight 24 lbs (11 kg)
Included accessories AC adapter, power cord, test print material, USB cable, MetazaStudioSoftware CD-ROM, vise and user’s manual
