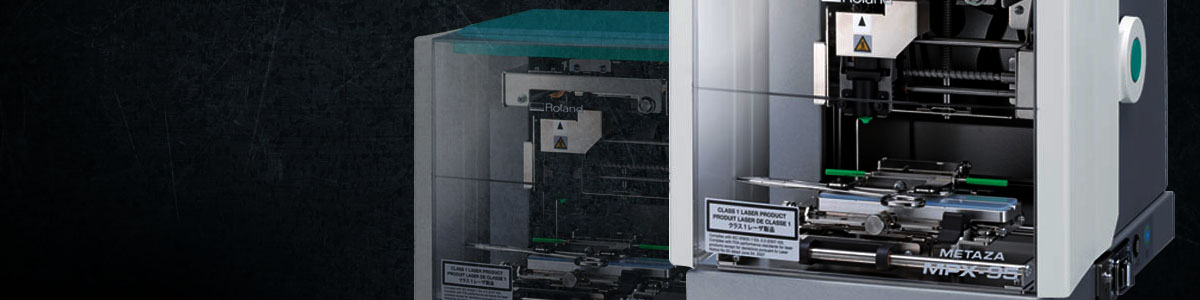

MPX-95 Impact Printer with DPM Kit

MPX-95
Photo Impact Printer with DPM Kit

Affordable and easy-to-operate, the MPX-95 offers the most versatile marking solution for industrial parts marking and UDI medical equipment compliance*. Users of all abilities can add precision data to a wide range of metal equipment.

Interested?

MPX-95 Order Now!

Added Versatility with Removable Base and Optional Kits

The MPX-95 introduces new features for imprinting onto more gift items and a wider range of equipment. These include a removable base plate and base unit to allow imprinting onto larger items, and the following kits for expanding application possibilities:

  • Gift Kit: Featuring a standard center vise and adjustable clamp-pin vise, the Gift Kit supports personalization of simple metal items plus curved and irregularly shaped items. The Gift Kit is an essential addition for gift personalization.
  • DPM Kit: Featuring a DPM vise and adjustable clamp-pin vise, the DPM Kit allows users to effectively mark onto simple and intricately shaped surgical instruments, industrial parts and tools. The DPM Kit is an essential addition for marking tools and surgical items.
    •

More Precision, Less Fuss

Without debris, noise or odor, users can add photo quality detail and complex barcode data to a printable area as small as one square millimeter and as large as 80 millimeters. There's far better accuracy and a lot less clean-up with an MPX-95.

Other Distinguishing Features

  • Diamond-tipped stylus marks silver, copper, platinum, brass, and aluminum up to 200HV
  • Includes easy-to-use METAZA Studio software – DPM version features 2D symbol code creator
  • Built-in laser pointer for quick and precise imprint set-up
  • Automatic surface detection
  • Variable data printing capabilities for applying sequential data
  • Compact and fully enclosed – runs quietly and safely in any kiosk, store or lab
    •
MPX-95
Imprintable material Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc. (Vickers hardness [HV] of the imprint surface must be 200 or less.)
Loadable material size Using a base table + base plate: Max. 3.9 in (W). X 7.9 in. (L) X 1.6 in. (H) - (100 mm (W) X 200 mm (L) X 40 mm (H)) or 7.9 in. (W) X 3.9 in. (L) X 1.6 in. (H) - (200 mm (W) X 100 mm (L) X 40 mm (H))

Using a base plate only: Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H) - (100 mm (W) X 200 mm (L) X 70 mm (H)) or 7.9 in. X 3.9 in. X 2.8 in. - (200 mm (W) X 100 mm (L) X 70 mm (H))
Imprint area Maximum imprintable area: 3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H)
80 mm (W) X 80 mm (D) X 70 mm (H)

Recommended imprint area: 2.0 in. (W) X 2.0 in. (D) X 2.8 in (H)
50 mm (W) . 50 mm (D) . 70 mm (H)
Resolution High resolution: 529 dpi
Photo: 353 dpi
Text: 265 dpi
Vector: 1058 dpi
Imprint direction Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver)
Imprint speed (Default) Photo: 2.0 in./sec (50 mm/sec)
High resolution/Text: 1.2 in./sec (33 mm/sec)
Vector: 0.94 in./sec (24 mm/sec)
Interface USB
Power requirements Dedicated AC adapter: AC 100 to 240 V ±10%, 50/60 Hz
Main unit: DC 19 V, 1.2 A
Power consumption Approx. 21 W
Operating noise 70 dB (A) or less
Operating temperature 50 to 86°F (10 to 30°C)
Operating humidity 35 to 80% (no condensation)
External dimensions 11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H)
286 mm (W) x 383 mm (D) x 308 mm (H)
